WinTV-HVR-1600 has these great features
|
|
 |
Watch and record ATSC high definition digital TV or analog cable TV on your PC, in a window or full screen! ATSC HD is the over-the-air high definition TV standard for North America.
|
|
Two tuners on board: a 125 channel cable ready TV tuner and an ATSC digital TV tuner. Connect both cable TV and ATSC digital TV to the WinTV-HVR-1600 at the same time.
|
|
Includes Hauppauge's WinTV2000 application. Our WinTV2000 application allows you to toggle between cable TV and ATSC digital TV channels.
|
|
Includes an IR blaster to change the channel on your satellite or cable TV set top box. Connect your set top box to the WinTV-HVR-1600 via S-Video.
|
|
Bundled software includes a TV scheduler plus ULead's® DVD MovieFactory™ authoring and burning software.
|
|
Digital ATSC HD TV features
|
|
ATSC over-the-air digital TV receiver built-in. Supports all ATSC formats, up to the high definition 1080i format!
|
|
Record ATSC digital TV to your PC's hard disk using high quality MPEG-2. TV recordings will typically consume 5 Gb of disk space per hour for ATSC high definition.
|
|
Analog TV features
|
|
125 channel cable ready TV receiver built-in. With dbx-TV stereo decoder, for great TV sound.
|
|
Composite/S-Video and audio inputs, for cable or satellite set top boxes or VCRs.
|
|
Record TV shows to your PC's hard disk using the built-in high quality hardware MPEG-2 encoder. While recording, the hardware encoder does all the work so your PC continues to run at full speed!
1-2 Gigabytes of disk is used per hour of recorded video. |
WinTV2000 screen shot showing controls
|
WinTV-HVR-1600 back panel showing
connectors
|
WinTV-HVR-1600 brings over-the-air high definition ATSC digital TV and analog cable TV to your PC. Watch and record TV in a window or full screen using high quality MPEG-2.
ATSC digital TV is the over-the-air digital TV for North America. ATSC digital TV typically requires an antenna for reception, and is currently broadcast in 200 cities, with over 1500 TV stations. Note: ATSC digital TV is NOT digital cable TV or digital satellite TV. The WinTV-HVR-1600 cannot receive digital cable TV or digital satellite TV.
ATSC digital TV brings you sharper pictures and enriches your PC’s multimedia experience with near CD quality sound. WinTV-HVR-1600’s ATSC digital TV receiver adds great features to your TV viewing: high definition TV reception, automatic identification of channel names plus records high-definition digital TV programs to your PC’s hard disk in an MPEG-2 format without no loss in quality.
Two tuners to simplify connections The WinTV-HVR-1600 has two tuners: one for analog cable TV and one for ATSC digital TV. You can connect both cable TV and an ATSC digital TV antenna at the same time. And our WinTV2000 application allows you to toggle between cable TV and ATSC digital TV channels.
Create your own personal Digital Video Recorder! Record cable TV or ATSC digital TV shows to disk with MPEG-2. Use the WinTV-Scheduler to schedule the recordings of your favorite analog or ATSC digital TV programs. Play the recordings back to your PC screen at any time.
Control your cable TV or satellite set top box with WinTV-HVR-1600’s IR Blaster. Both the WinTV2000 and WinTV-Scheduler can automatically control the channel on your set top box, so you no longer need to manually change set top box channels.
Are you using Windows XP Media Center Edition or Vista? If so, you can add WinTV-HVR-1600 as either the primary or as the second TV tuner. The Microsoft Media Center application supports up to two TV tuners, so you can watch one TV channel while recording another! And WinTV-HVR-1600 has Windows Vista Premium certification.
Technically speaking

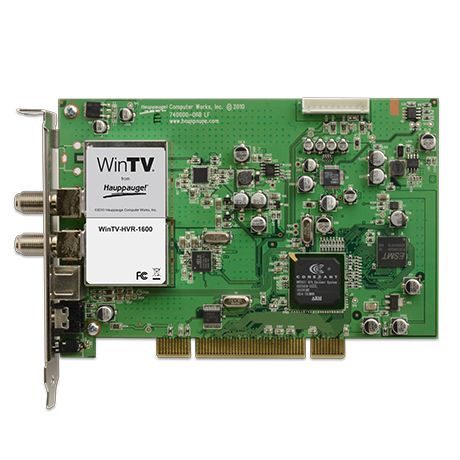

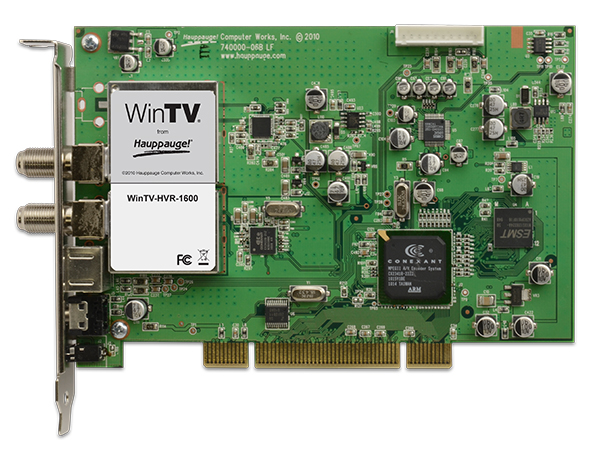

WinTV-HVR-1600 contains two tuners: a ATSC digital TV tuner for over the air digital TV reception plus a 125-channel cable ready TV tuner. For ATSC digital TV, all 18 ATSC formats including 1080i can be watched or recorded to disk as a Program Stream. A highly integrated MPEG-1/2 hardware encoder based on the Conexant -418 is on-board for recording analog cable TV to disk. The playback of the recorded ATSC digital or MPEG-2 encoded analog program is done through a software MPEG-2 player. An on-board IR receiver and transmitter uses a software loaded set top box table for the codes to control a set top box.
Included in this package
|
|
WinTV-HVR-1600 PCI bus card with 125 channel cable-ready TV tuner, ATSC receiver, hardware MPEG-2 encoder, dbx-TV stereo decoder, S-Video/composite and audio inputs. |
|
IR remote control receiver. |
|
IR Blaster (infra-red remote control transmitter), to control satellite and cable TV set top boxes. |
|
WinTV-HVR-1600 CD-ROM includes: |
|
|
WinTV2000 application for TV in a window plus TV recording, pause and playback. |
|
|
WinTV-Scheduler for scheduling your TV recording, and with link to TitanTV.com*. |
|
|
WinTV MPEG editor for high quality cutting and pasting of your standard definition video movies. |
|
|
Ulead® DVD MovieFactory™, to create your own videos on DVD or CD* |
|
Model numbers
|
|
model 01178: WinTV-HVR-1600 with English manual
|
|
model 01181: WinTV-HVR-1600 with French/Englsh manual
|
|
 |
Notes:
* For Analog TV reception, you need an analog cable TV connection. If you have a digital cable set top box or a satellite box, the WinTV-HVR-1600 can connect via either Composite or S-Video inputs. Channel changing will be done using the IR blaster.
* For ATSC over-the-air digital TV reception, a high gain antenna is recommended. To check the ATSC TV broadcasts in your area, go to TitanTV.com and enter your postal code.
Note: depending on the strength of your antenna, you might not be able to receive all broadcasts listed at TitanTV.
* To use the WinTV-HVR-1600 for TV with the Windows Media Center application, a Media Center certified DVD or MPEG software decoder should be standard in your Media Center PC. If you are building a Media Center PC, check Microsoft's web site for a list of Media Center certified DVD decoders.
Note: the enclosed remote control is not MCE certified and does not replace Media Center remote control.
* ATSC TV recordings are not 100% compatible with DVD, and therefore you cannot burn them directly to a DVD.
|
